Sibom Skid Steer Pile-Driver &Pile Extractor for CAT Bobcat loaders

Attachment

Sibom Skid Steer Pile-Driver &Pile Extractor, height-adjustable design, strong pulling/Pushing force

The Sibom Pile-Driver & Pile Extractor is a specialized construction machine designed for highway guardrail steel pipe piling. Using an impact piling mechanism efficiently drives piles into the ground and offers ...

Sold out
Contact for Pricing
Contact for Pricing
Contact for Pricing
  • Employs a powerful impact force to drive steel pipe piles swiftly and securely, ideal for highway...
  • Features robust extraction capabilities, allowing the quick removal of damaged or broken piles an...
  • Equipped with an adjustable arm mechanism, enabling precise positioning for various pile lengths ...
  • Designed with a compact structure for quick assembly and disassembly, facilitating rapid relocati...
SKU spdp

Features

Key Features

  1. Employs a powerful impact force to drive steel pipe piles swiftly and securely, ideal for highway guardrail construction.
  2. Features robust extraction capabilities, allowing the quick removal of damaged or broken piles and reducing labor and operational costs.
  3. Equipped with an adjustable arm mechanism, enabling precise positioning for various pile lengths and ensuring accurate, efficient performance.
  4. Designed with a compact structure for quick assembly and disassembly, facilitating rapid relocation between job sites and minimizing downtime.

Application

Application in Action

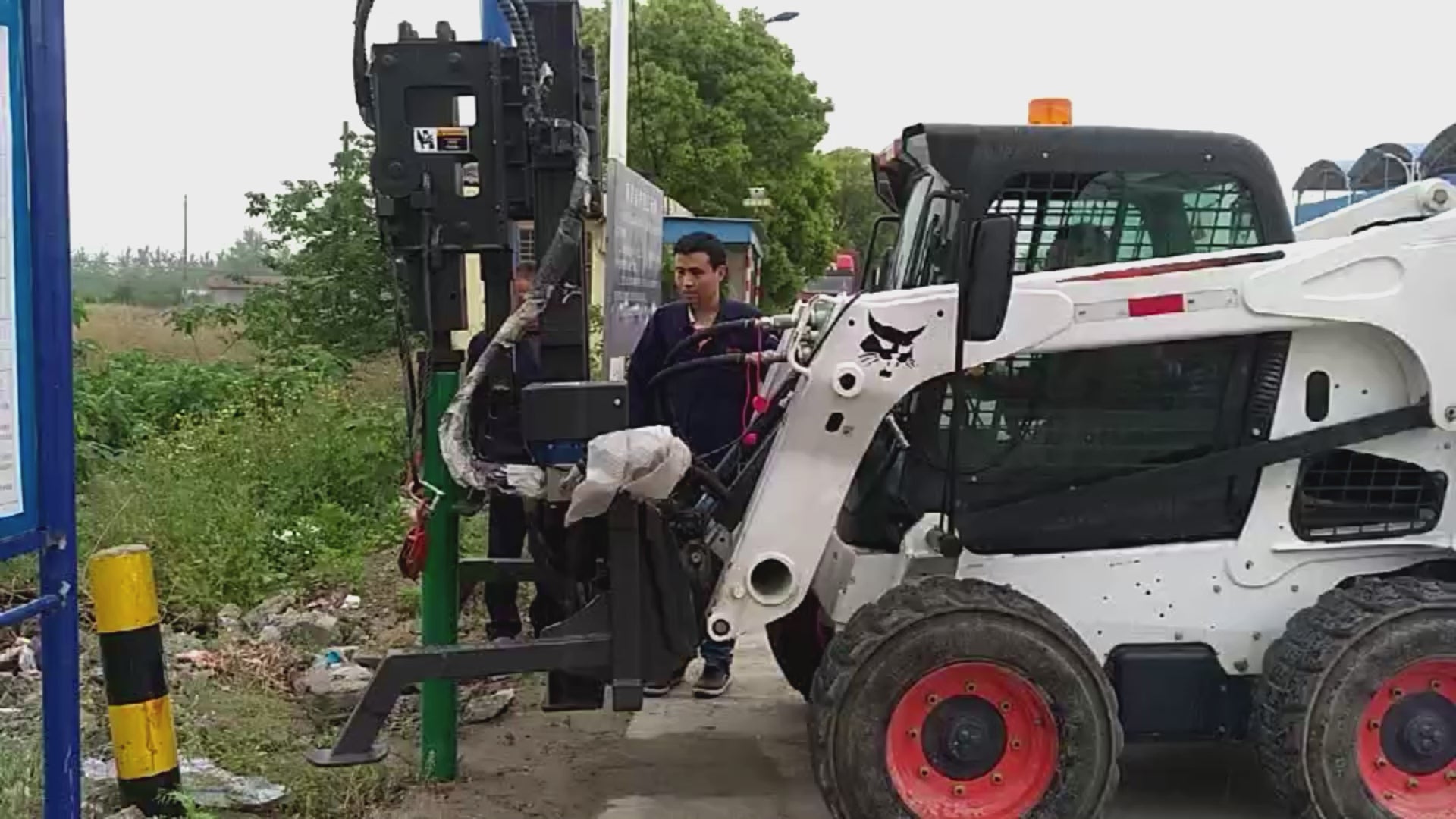

Watch this attachment at work in real job-site conditions.

Specs

Specifications

Model spdp
Total Height (in) 68.3 - 100.0
Total Width (in) 67.7
Total Length (in) 34.8
Weight (including plugins) (lbs) 1785.7
Brock Diameter (in) 2.8
Brock Cap Diameter (in) 5.8 or 4.7
Work Flow (GPM) 10.6 - 18.5
Working Pressure of the Crushing Hammer (psi) 1740 - 2030
Impacting Frequency (Bpm) 500 - 700
Piston Gas Chamber Pressure (psi) 174 - 203
Pull the Pile Force (Tons) 8
The Height Range of Piling (in) 23.6 - 102.4

Overview

Product Overview

Performance

  • Dual-function performance
    A single hydraulic module powers both the hydraulic pile driver and hydraulic pile extractor, giving contractors a true combo pile driver extractor that cuts setup time and eliminates extra machines.

  • Impact muscle, precision control
    The high-energy hammer delivers a powerful, clean strike, while a self-aligning hydraulic clamp holds each steel pipe dead-vertical for accurate placement. For removal, the same clamp supplies high pulling force to yank out damaged posts without torching or digging.

  • Height-adjustable, compact frame
    The mast telescopes from 68 to 100 inches, letting operators work on deep embankments or tight urban lanes. At just 34.8 in long and 67.7 in wide, the unit threads through narrow work zones and loads easily on a flatbed for rapid relocation pile driver moves.

  • Low-downtime design
    Heavy-duty seals, wear plates, and a durable pile driving attachment structure mean fewer rebuilds; quick-disconnect hoses and a bolt-in hammer cartridge keep field service simple.

  • Versatile host compatibility
    Run it as a post driver skid steer, a pipe pile press attachment on a mini excavator, or a road maintenance pile extractor behind a track loader—the hydraulic circuit needs only 18–21 GPM at 3,050 PSI.
