Sibom Skid Steer Dozer Blade for CAT Bobcat loaders

Attachment

SIBOM Skid Steer Dozer Blade, 30° Hydraulic Angling, Depth Shoes, Trip Spring

The Sibom Dozer Blade is a versatile, powerful earthmoving attachment designed to transform your skid steer into a high-performing dozer machine. Built for durability and efficiency, this attachment allows operators ...

Sold out
Contact for Pricing
Contact for Pricing
Contact for Pricing
  • Designed for universal skid-steer loader quick-attach mounting, the dozer blade is compatible wit...
  • Available in blade widths of 60", 72", 84", and 96", the Sibom&n...
  • The blade can tilt left or right up to 30° off-center and rotate up to 10° horizo...
  • The interchangeable angle and tilt cylinders are equipped with self-aligning bushings, enhancing ...
SKU
Choose a Model
Request a Quote Contact Us

Features

Key Features

  1. Designed for universal skid-steer loader quick-attach mounting, the dozer blade is compatible with skid steers up to 110 HP. Its adaptability makes it suitable for a wide range of equipment and applications.
  2. Available in blade widths of 60", 72", 84", and 96", the Sibom Tilting Dozer Blade features integrated tilt systems that allow for precise grading, leveling, and trenching.
  3. The blade can tilt left or right up to 30° off-center and rotate up to 10° horizontally in both directions, ensuring exceptional control and accuracy.
  4. The interchangeable angle and tilt cylinders are equipped with self-aligning bushings, enhancing operational smoothness and reducing wear over time.
  5. Equipped with a reversible ½" x 8" bolt-on cutting edge and a formed moldboard measuring 0.31" thick and 28" high, the blade delivers superior cutting performance and durability for extended use.
  6. Features a large 3" center pivot pin with hardened steel bushings, ensuring stability and strength during heavy-duty operations.
  7. The full-length, high-carbon steel skid shoe is replaceable, prolonging the attachment’s service life and maintaining optimal performance even in demanding conditions.
  8. A built-in tilt indicator is positioned for maximum visibility from the operator's seat, allowing precise blade adjustments and better control during operation.

Application

Application in Action

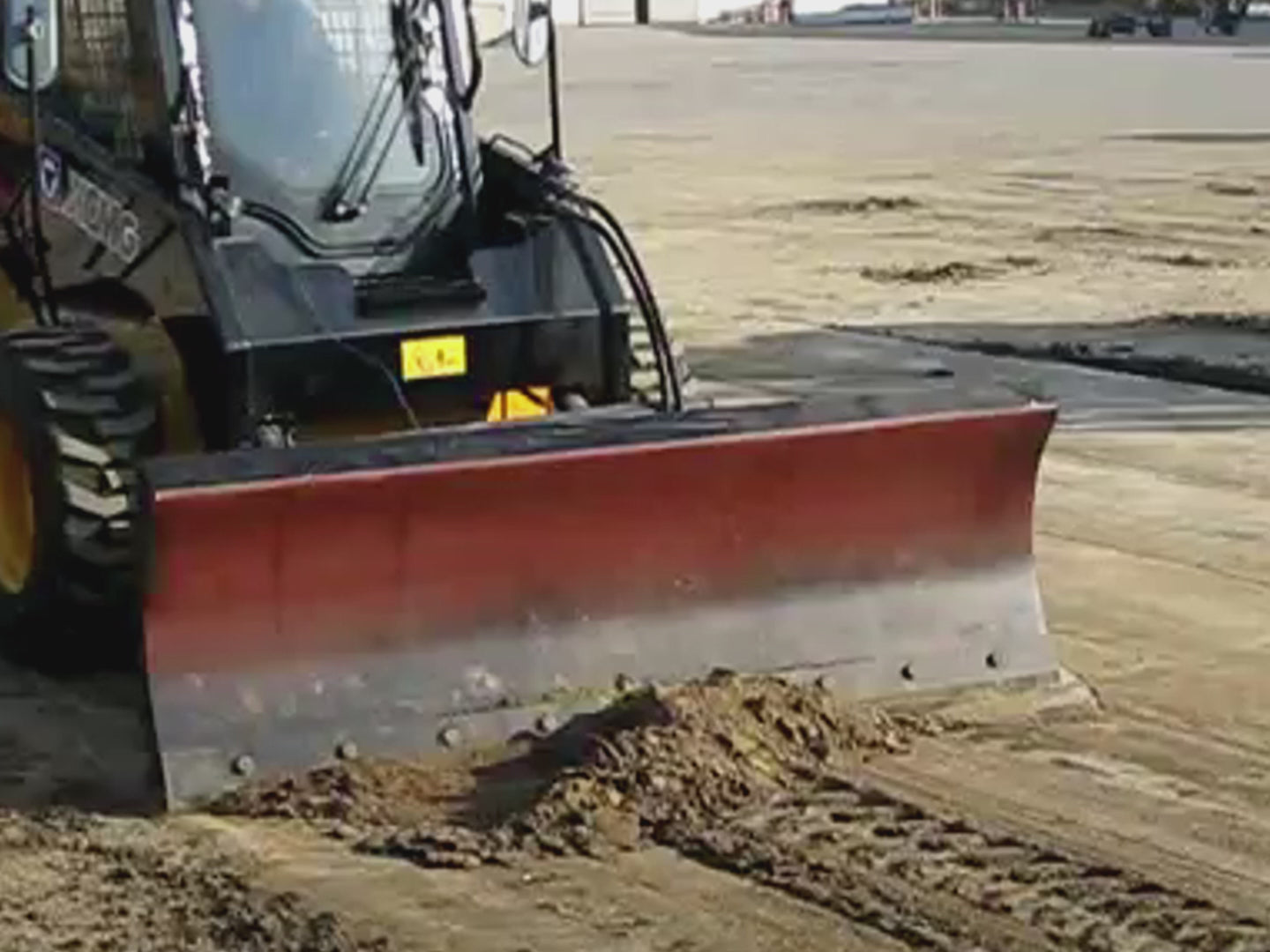

Watch this attachment at work in real job-site conditions.

Specs

Specifications

Model sdbl60 sdbl72 sdbl84 sdbl96
Overall Width (in) 60.2 72 83.5 94.5
Steering 30° Width (in) 50 59.8 72.7 85.8
Overall Height (in) 27.6 27.6 27.6 27.6
Overall Length (in) 38 38 38 38
Deflection Angle (°) ±30 ±30 ±30 ±30
Maximum Angle of Yaw (°) ±10 ±10 ±10 ±10
Weight (lbs) 1157.4 1225.6 1267.7 1377.9
Working Flow (GPM) 5.3 - 7.9 5.3 - 7.9 5.3 - 7.9 5.3 - 7.9
Operating Voltage (V) DC12/24 DC12/24 DC12/24 DC12/24
Maximum Pressure Allowed (psi) 3045.8 3045.8 3045.8 3045.8
Package Size (in) 66.1 x 43.3 x 35.4 77.9 x 43.3 x 35.4 89.7 x 43.3 x 35.4 100.4 x 43.3 x 35.4
Pack Weight (lbs) 83.8 88.2 92.6 99.2

Overview

Product Overview

Performance

  1. The Sibom Series Dozer Blade is engineered to handle tough earthmoving tasks with ease, including trench backfilling, surface grading, and material pushing. Its precise tilt and angle adjustments ensure clean and professional results.
  2. Constructed with high-strength materials and reinforced components, this dozer blade is designed to withstand harsh environments and heavy loads, providing long-term reliability.
  3. The advanced tilt and angle system enables precise control over the blade position, making it ideal for tasks that require accuracy, such as fine grading and slope adjustments.
  4. Whether working on construction sites, landscaping projects, or road maintenance, the dozer blade’s robust features make it a versatile tool for multiple industries.
  5. With replaceable components like the skid shoe and bolt-on cutting edge, the dozer blade minimizes downtime and simplifies maintenance, keeping your equipment running efficiently.

Inquiry

Request a Quote

Tell us about your machine and application. Our team will help you choose the right attachment configuration.

  • Product pricing & availability
  • Machine compatibility check
  • OEM / custom options
Product Inquiry SIBOM Skid Steer Dozer Blade, 30° Hydraulic Angling, Depth Shoes, Trip Spring
