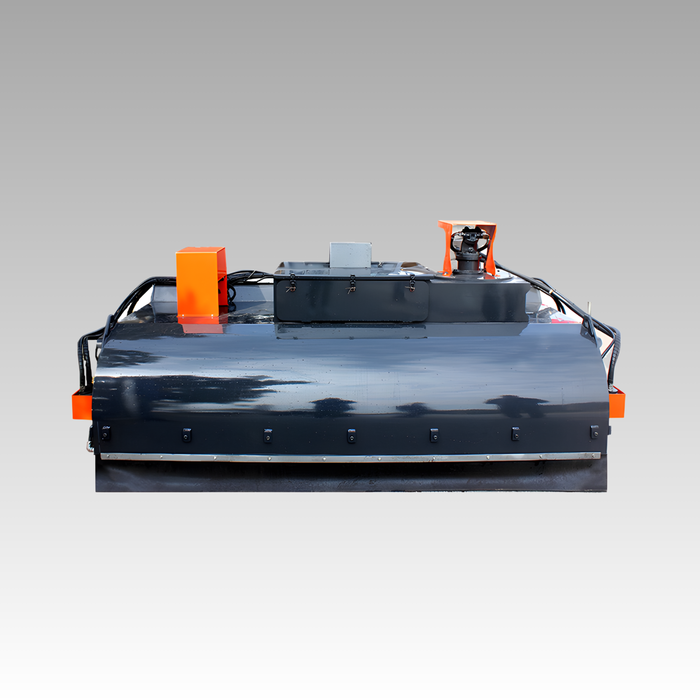

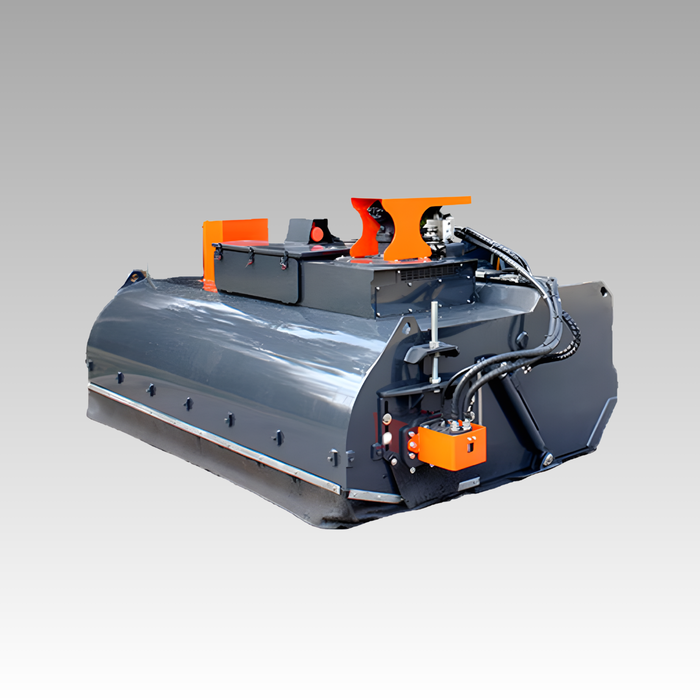

Sibom wheel loader negative pressure dust sweeper for CAT Bobcat loaders

Sibom wheel loader negative pressure dust sweeper, 88286 ft³/min Air volume

$42,399.00 - $42,399.00
$42,399.00
$42,399.00
$42,399.00 - $42,399.00
$42,399.00
SKU w13npds110np
  • The Sibom negative pressure dust sweeper featuring dual motors directly connected to a drive roller brush, it ensures high efficiency and exceptional cleaning performance.
  • The advanced design incorporates a steplessly adjustable brush made with a polyethylene steel wire mixed brush wire, significantly enhancing wear resistance and extending the brush’s service life by 1.5 times.
  • The hydraulic tipping bucket unloading system enables one-key, fast, and simple unloading, while a removable wear-resistant plate installed at the bucket bottom further prolongs the bucket’s lifespan.
  • With a quick replacement system for the motor installation, the sweeper is built to optimize maintenance efficiency and minimize downtime.
Product Feature
  1. Ensures high-efficiency sweeping with a powerful, direct connection to the roller brush, delivering consistent and clean performance.
  2. Utilizes a polyethylene steel wire mixed brush wire for superior wear resistance and longevity, with a stepless adjustment mechanism that maintains optimal contact for the cleanest sweep.
  3. Features a one-key unloading system for fast and straightforward operation. The bucket bottom includes a removable wear-resistant plate to extend its service life.
  4. The motor installation is designed for rapid brush replacement, significantly boosting operational efficiency and reducing maintenance downtime.
Performance Introduction
  1. The Sibom wheel-loader negative-pressure dust sweeper is the heavy-duty answer for factories, quarries, asphalt plants, and municipal road crews that need true dust-free cleanup.
  2. Twin high-torque motors drive the direct-drive roller brush—packed with a polyethylene / steel-wire mix—so the broom keeps optimal ground contact via stepless brush adjustment, lasts 1.5 times longer than standard poly wafers, and never scratches pavement.
  3. A sealed housing channels high-airflow suction to lift fine particulate into the hopper, turning your loader into an industrial vacuum dust sweeper that controls pollution instead of spreading it.
  4. When the hopper is full, simply hit the cab switch: dual cylinders trigger a one-key hydraulic tipping bucket for fast, vibration-free unloading, aided by a removable wear plate that protects the bucket floor.
  5. Quick-attach lugs and a rapid-fit motor mount keep changeovers and maintenance under ten minutes, slashing downtime on tight schedules. From airport aprons and port terminals to warehouse aisles and highway shoulders, this high-efficiency, low-noise dust containment sweeper delivers surface-safe results, operator comfort, and long service life—making it the go-to wheel-loader sweeping attachment for contractors and municipalities that refuse to compromise on clean air or productivity.
Specifications
Model w13npds110np
Overall length (in) 77.76
Overall width (in) 135.43
Overall height (in) 58.07
Total weight (including pendant) (lbs) 4673.79
Sweeping width (in) 110.24
Brush roller diameter (in) 31.5
Collector hopper capacity (ft³) 102.36
Air volume (ft³/min) 88286.7
Filtration precision (μm) <10
Working flow rate (gal/min) 42.27-52.83
Working pressure (psi) 232-348
Machine Configurations
Performance Video
Warranty We’re here to support you every step of the way. In addition to a 1-year manufacturer’s warranty, our dedicated customer service team is ready to assist with any questions, troubleshooting, or guidance you may need throughout your ownership experience.

More warranty Information
